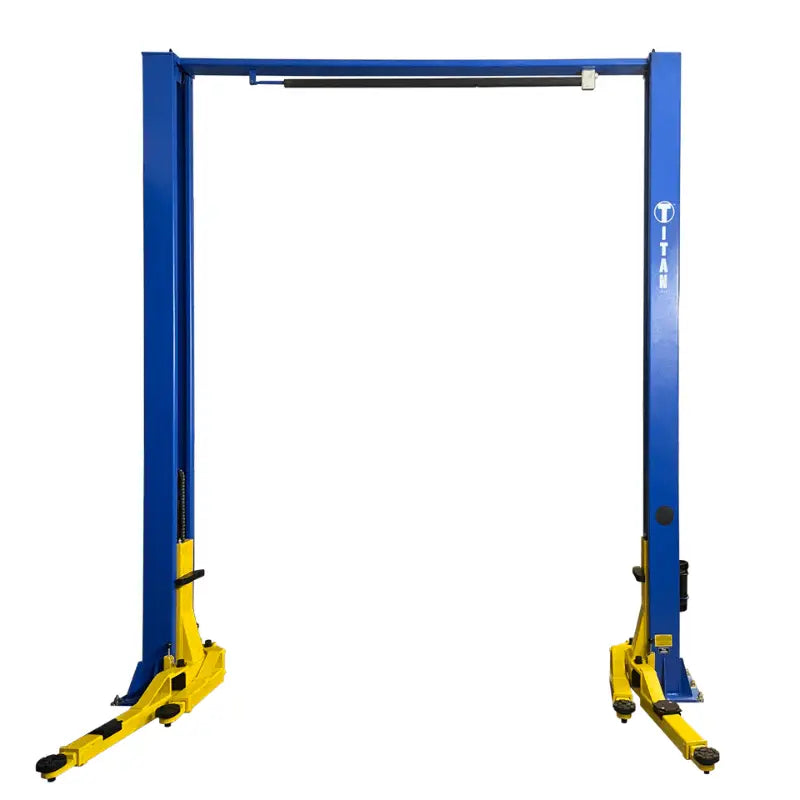

The Titan HD2P-9000AC Gen-2 2-Post Lift is engineered to deliver professional-grade lifting performance for automotive repair shops, service centers, and dedicated home garages. Designed with a robust 9,000 lb lifting capacity, this heavy-duty lift accommodates a wide variety of cars, trucks, and SUVs while providing exceptional stability and reliable operation. Its asymmetric arm configuration allows for improved vehicle access, making maintenance and repair tasks more efficient and convenient.

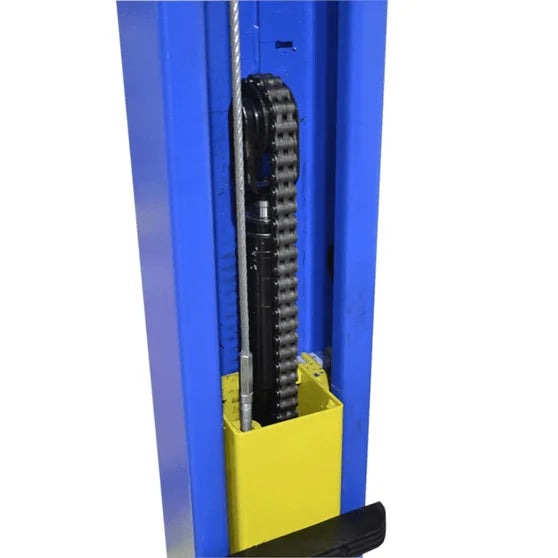

Built with durable commercial-grade components, the HD2P-9000AC features dual hydraulic cylinders, low-friction chain rollers, and automatic arm restraints for smooth lifting performance and enhanced safety. The powder-coated cobalt blue finish with bright yellow arms adds durability and a professional appearance, while integrated safety features such as rubber door guards and an overhead shut-off bar help protect both vehicles and operators during use.
Key Features:
- Heavy-duty 9,000 lb lifting capacity
- Commercial-grade design for professional and enthusiast applications
- Asymmetric arm layout for easier vehicle entry and access

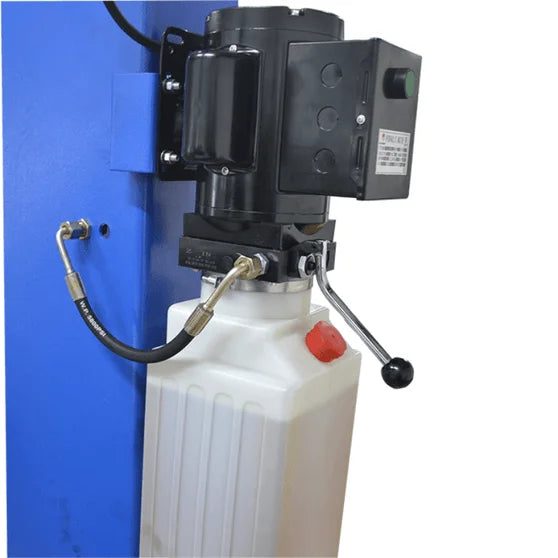

- Dual 3 in. hydraulic cylinders for smooth lifting operation
- Low-profile lifting arms with automatic arm restraints
- Dual-point safety release system for controlled lowering
- Rubber door guards help protect vehicle finishes
- Padded overhead safety shut-off bar for added safety
- Durable powder-coated finish for long-lasting protection
- Internal hose routing with integrated hose guards for cleaner appearance
- Includes threaded lifting pads and stackable truck adapters
- Anchor bolt kit included for secure installation
Specifications:
- Lift Type: 2-Post Lift
- Lifting Capacity: 9,000 lbs
- Power Requirement: 220V
- Amp Draw: 15–26 Amps
- Lifting Speed: Approximately 45 Seconds
- Overall Width: 137.8 in.
- Overall Height: 142.95 in.
- Width Between Posts: 113.62 in.
- Drive-Thru Clearance: 103.98 in.
- Lifting Height Range: 4.65 in. – 72.84 in.
- Concrete Requirement: 4 in. Thick, 3,000 PSI
- Shipping Weight: 1,380 lbs
Warranty:
- 5-Year Structural Warranty
- 1-Year Electric and Hydraulic Parts Warranty
