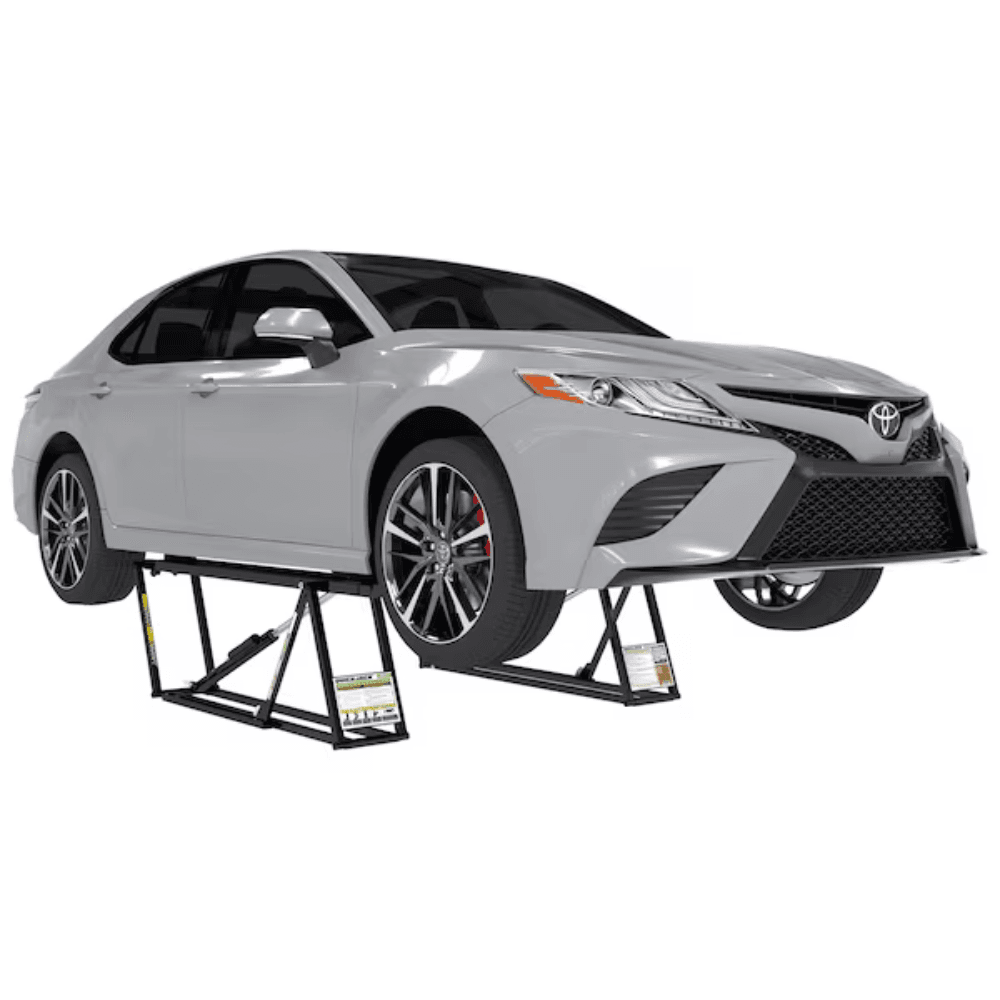

The QuickJack 5000TL is a portable, lightweight, and easy-to-use car lift, perfect for home mechanics, car enthusiasts, and small garages. With a 5,000 lb. lifting capacity, this lift provides quick and efficient vehicle access for maintenance, detailing, and repairs.
Unlike traditional jacks and stands, the QuickJack 5000TL offers a stable, automatic lifting system with dual-position safety locks, ensuring a secure and hassle-free lifting experience. Its one-handed operation allows users to raise and lower the lift with minimal effort, and with an increased lifting height of up to 26.75 inches, it provides more versatility for various vehicle types.

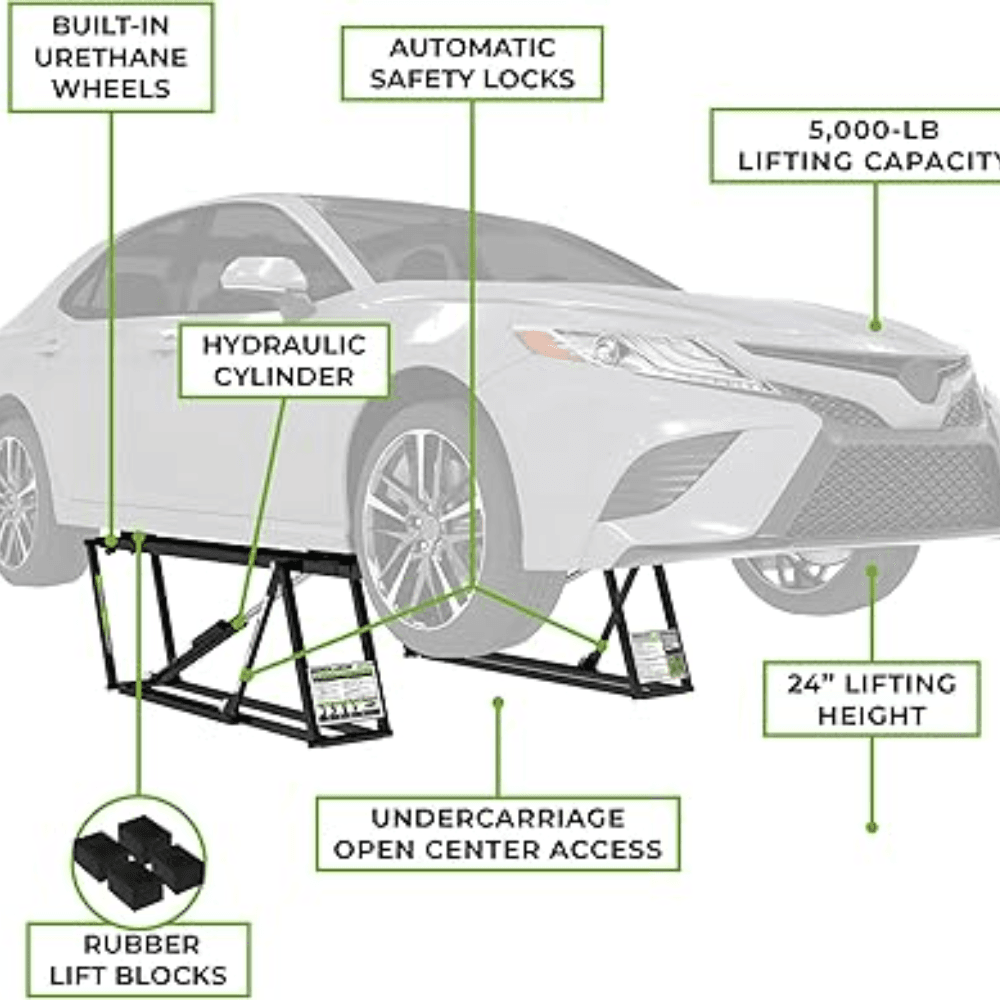

Key Features & Benefits
- 5,000 lb. Lifting Capacity – Ideal for cars, light trucks, and SUVs.
- Automatic Safety Locks – Dual-position locks engage at mid-rise and full-rise for enhanced security.
- Increased Lifting Height – Offers 3 inches more clearance than previous models, improving comfort and versatility.

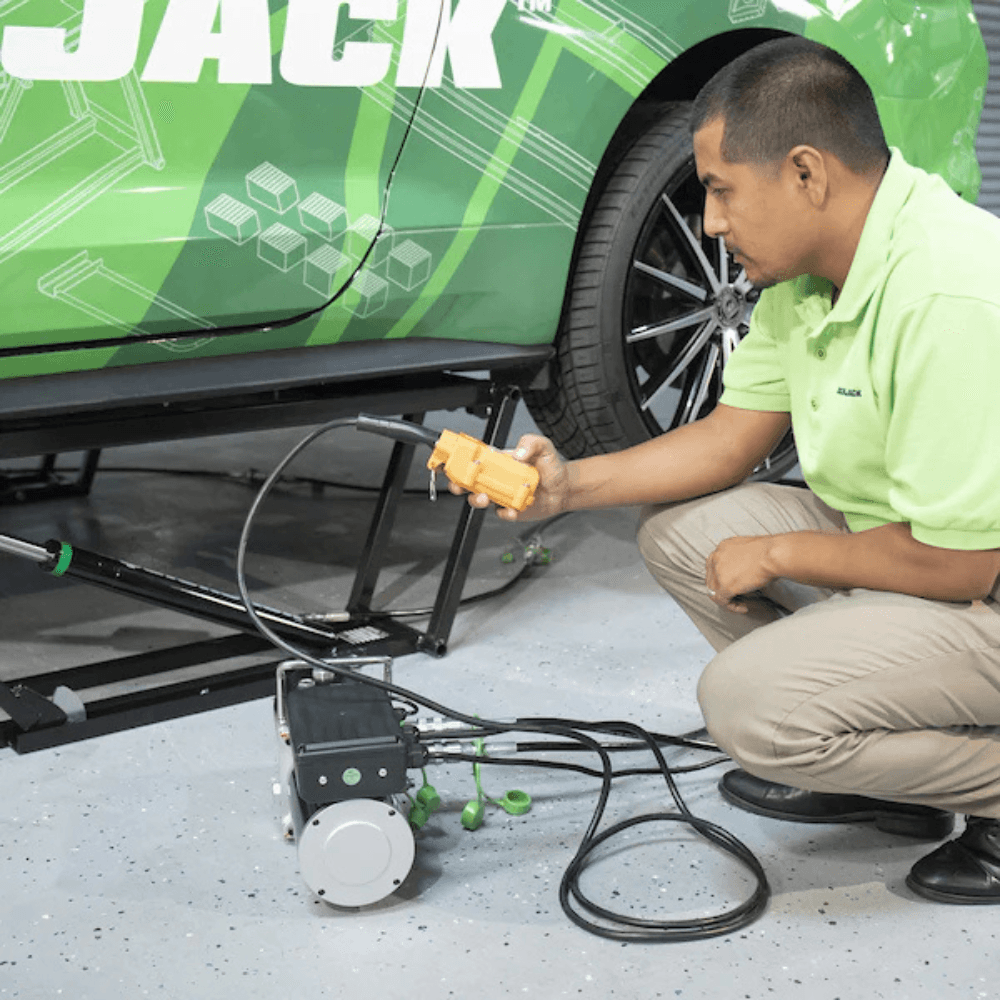

- One-Handed Operation – The pendant control allows for easy lifting and lowering without manual cranking.
- Fast Lifting Time – Reaches full rise in just 30 seconds.

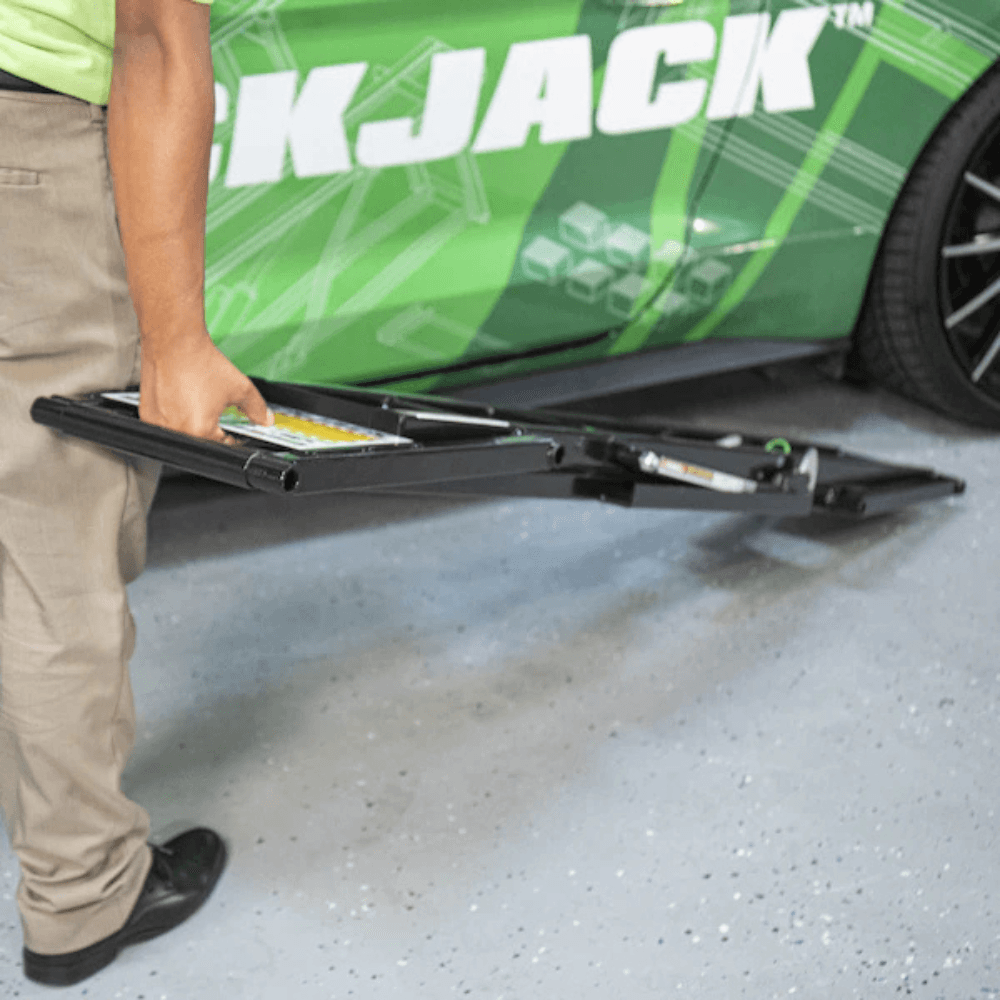

- Portable & Compact – Can be easily stored when not in use, saving garage space.
- Durable Frame Design – Built for long-lasting performance and safety.
- Customizable with Accessories – Expandable with various QuickJack accessories to suit different vehicle types and needs.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 5,000 lbs. (2,268 kg) |
| Lowered Height (With 2″ Block) | 3.5″ (89 mm) |
| Lifting Height (With 2″ Block) | 21″ (521 mm) |
| Lifting Height (With 3″ Block) | 22″ (546 mm) |
| Max Height (Without Adapters) | 24″ (616 mm) |
| Max Height (With Adapters) | 24″ (597 mm) |
| Max Height (With Adapters + Pin) | 26.75″ (673 mm) |
| Lift Point Spread (Maximum) | 60″ (1,524 mm) |
| Lift Point Spread (Minimum) | 37″ (940 mm) |
| Frame Dimensions (Each) | Width: 11″ (278 mm), Length: 70″ (1,778 mm) |
| Frame Weight (Each) | 78 lbs. (35 kg) |
| Time to Full Rise | 30 seconds |
| Power Unit Weight | 15 lbs. (7 kg) |
| Shipping Dimensions (Each Frame) | 73.5″ (L) x 15.25″ (W) x 5″ (H) |
| Total Shipping Weight | 240 lbs. (109 kg) |
What’s Included?
- 5000TL Left Frame Assembly
- 5000TL Right Frame Assembly
- 1x Hydraulic Power Unit with Control

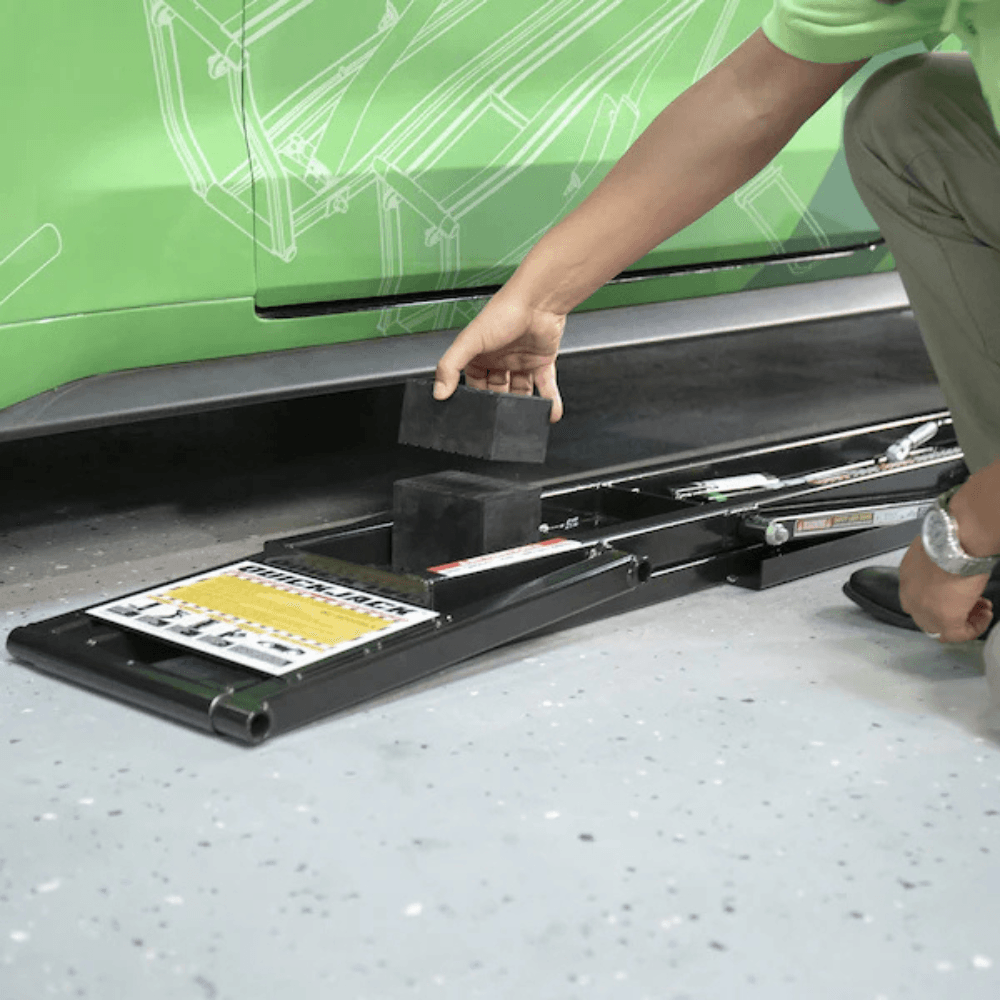

- 4x Medium Rubber Lift Blocks (2″)
- 4x Tall Rubber Lift Blocks (3″)
- 2x Short Hydraulic Hoses
- 2x Long Hydraulic Hoses
- 2x Frame-Positioning Handles
- Fittings and Thread Tape for Setup
- Instruction Manual
Why Choose the QuickJack 5000TL?
The QuickJack 5000TL is the ultimate solution for DIY mechanics and professionals looking for a portable, fast, and reliable car lift. Its automatic locking system, increased lifting height, and one-handed operation make it an exceptional alternative to jack stands and traditional lifts.
For those in need of a lightweight, space-saving, and high-performance lifting system, the QuickJack 5000TL is an unbeatable choice!
