Description

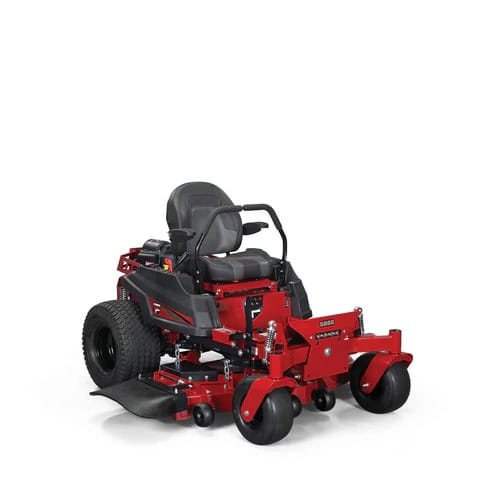

The 500S zero turn mower is packed with essential features to deliver reliable productivity and performance. The differentiating 4 point suspension saves your body from the pains of continuous mowing. Plus, commercial-like performance and extras like the LED headlight make for a confident mowing experience season after season.
Engine Brand
Briggs & Stratton® CXi
Engine Power Rating *
25
Displacement (cc)
724
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
3
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
61
Cutting Height (in)
1.5 – 4.5
Spindles
Aluminum Greaseable
Suspension
Front and rear adjustable dual coil-over shocks
Transmission
Dual Hydro-Gear® ZT-3100® transaxles with 7″ cooling fans
Deck Construction
Fabricated 10-gauge
Drive Axles (in)
1
Caster Tires (in)
13 X 6.5-6
Drive Tires (in)
22 X 11 – 10
Ground Speed-Fwd (mph)
0-8.5
Ground Speed-Rev (mph)
0-4
Overall Length (in)
80
Overall Width (in) Deflector Down/Deflector Up
74
Dry Weight (lbs)
APPROX
Seat Package
Mid-back seat with arm rests
Certified Roll-over Protection System
N/A
Controls / Safety Group
Seat activated engine kill, clutch Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls switch
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year Manufacturer’s Limited Warranty (36 month)
Warranty (Balance of Machine) †
Consumer Warranty (Product), 3-Years / Commercial Warranty (Product), 90-Days / Fabricated Mower Deck Warranty, Lifetime
Features
Patented Suspension
The 500S comes equipped with swingarm rear and pivoting front coil-over shocks meaning less concern for uneven ground, and more focus on getting work done.
Commercial Grade Power
Commercial-Grade Power Briggs & Stratton® CXi Series engines are built with the ultimate in dust and particle filtration, an advanced debris management system and a beefed-up cylinder block structure.
Convenient Components
Confidently mow day or dusk with the standard integrated LED headlight, premium mid-back seat, and improved engine protection.
Fabricated Mowing Deck
The fabricated 10-gauge steel mowing deck is durable and provides reliable cutting performance in a variety of conditions.
Hydro-Gear Transaxles
Dual-commercial transaxles with 7″ cooling fans repel debris and provide consistent power.
AIR FILTER:
OIL FILTER:
FUEL FILTER:
SPARK PLUG:
PTO BELT: NA
DECK BELT:
DRIVE BELT:
TRANS FILTER: 52114
BLADES:
XTREME BLADES: N/A
IGNITION KEY: 7106170
ENGINE OIL:
Confident Traction
22-inch rear-drive tires and large front casters ensure wheel contact for dependable traction in varying conditions.
