Description
If you regularly split wood, the CountyLine 28 Ton Log Splitter will save you time and money. This impressive high-performance hydraulic log splitter easily breaks up logs with 28 tons of force. This is the perfect splitter for properties large and small. The Ultimate Engine
The CountyLine 28-Ton Log Splitter uses a 196cc Kohler SH270 Series engine, which is known for having both industry-leading power and a user-friendly design. Featuring 6.5HP, 10.2 FT-LBS of Torque, 13 Second Cycle Time and a 14 GPM 2-stage pump this engine is sure to perform under the toughest of challenges. The Kohler has an accessible air filter and spark-plug, making it extremely easy to maintain, and a dual ball bearing crankshaft design that makes starting up a breeze.
Splits Bigger and Tougher Logs

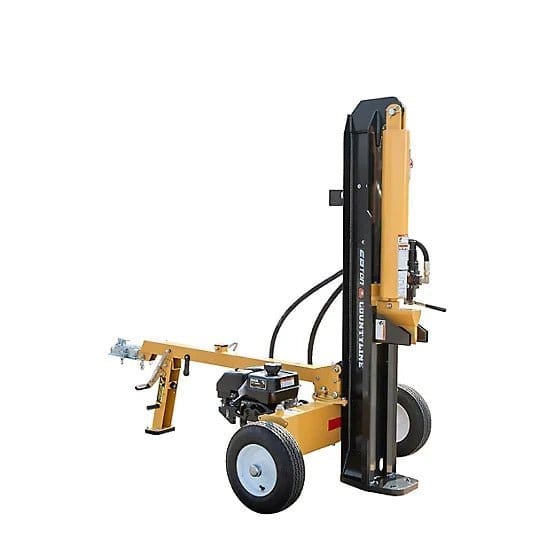

There aren’t many logs you can’t split with the CountyLine 28-Ton Log Splitter. The self-locking ground stand keeps the splitter securely planted during use. It conveniently tilts vertically, allowing you to split bigger sized logs without putting added strain on your body from lifting.
Easy to Maintain and Extremely Movable
The CountyLine 28-Ton Log Splitter is easy to clean, and even easier to move around. It has durable 16 in. D.O.T. approved pneumatic tires that allow you to conveniently haul your splitter down the road or out into the field.
- Powered by a Kohler SH270 196cc engine
- 28-Tons of Ram Force Easily Splits Logs
- Fast 13-Second Cycle Time Means More Cords Per Hour
- Equipped with a 2-Stage 14 GPM Pump
- 4 gal. Hydraulic Reservoir Capacity
- Strong Self-Locking Ground Stand Keeps the Log Splitter Secure
- Rolls on DOT-Approved 16 in. Tires
- 2 in. Ball Coupler
- Optional Log Catcher Available for Purchase
Log splitter is backed by a 5-year warranty on materials and workmanship; 3-year engine warranty and 3-year hydraulic warranty
Key Features & Benefits
Brand
CountyLine
Country of Origin
Imported
Amperage
0 Amp
Cycle Time
13 sec.
DisclaimerARS-CARBCompliant
Yes
DisclaimerARS-GasPower
Yes
Engine Displacement
196cc
Engine Type
4-cycle
Fuel Tank Capacity
3.3 L
Horsepower
6.5 HP
Hydraulic Capacity
4 gal.
Log Splitter Features
DOT Approved, Portable, Automatic Return, Hydraulic
Log Splitter Maximum Log Diameter Range
21 – 30 inches
Log Splitter Maximum Log Length
26 in
Log Splitting Force
28 ton
Maximum Log Diameter
36 in.
Maximum PSI
3,800 PSI
Engine Brand
Kohler
Operational Orientation
Horizontal and Vertical
Power Type
Gas
Primary Material
Steel
Product Height
39.37 in.
Product Length
90.55 in.
Product Weight
492 lb.
Product Width
47.64 in.
Pump Rating
14 GPM
Recommended Oil Type
Kohler 10W-30
Start Type
Manual
Tire Size
16 in.
Torque
10.2 ft./lbs.
Warranty
5-year warranty on materials and workmanship, 3-year engine warranty and 3-year hydraulic warranty
Manufacturer Part Number
YTL-050-029
