Description

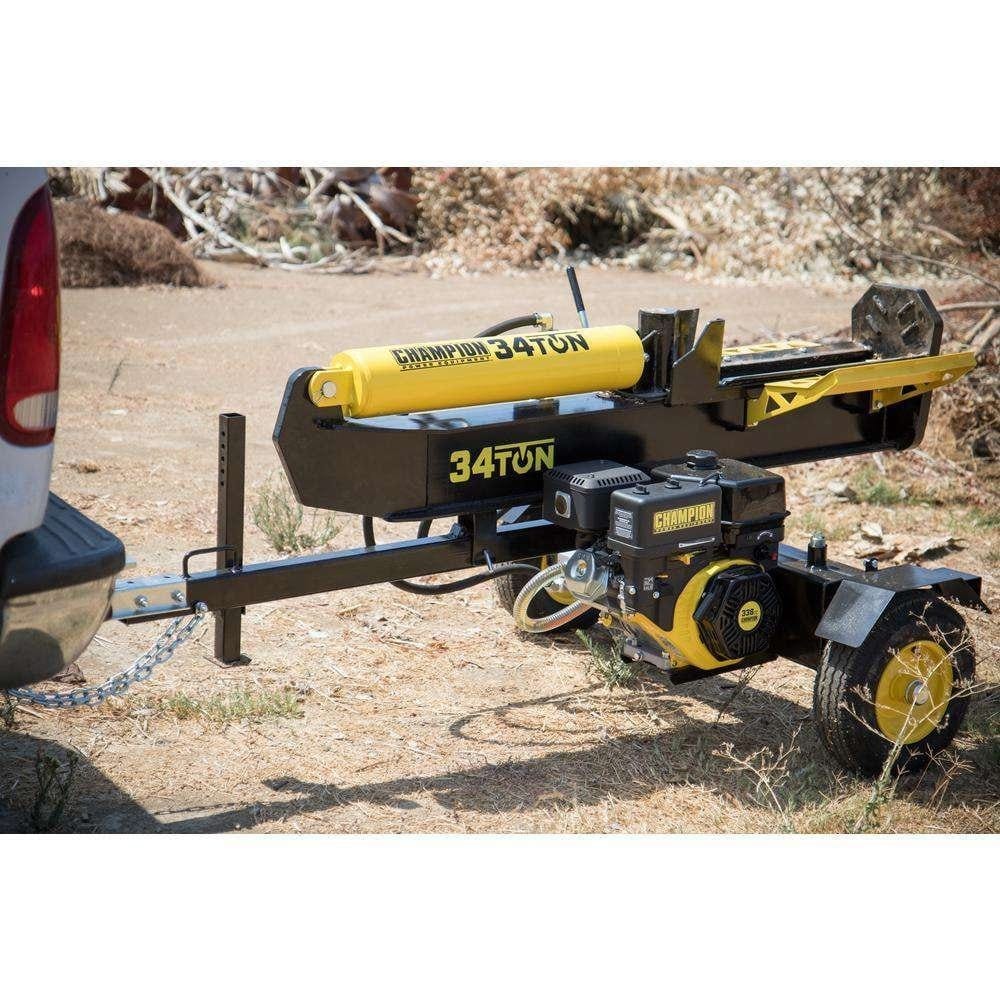

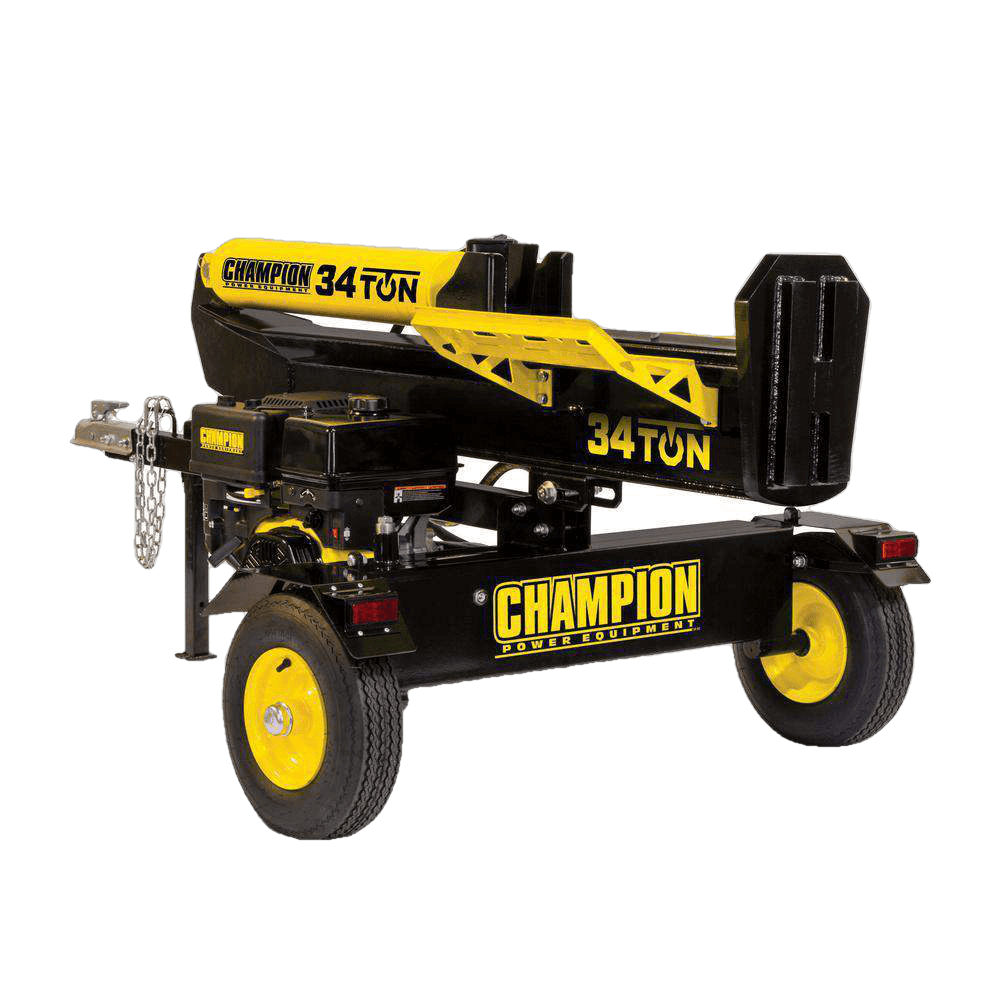

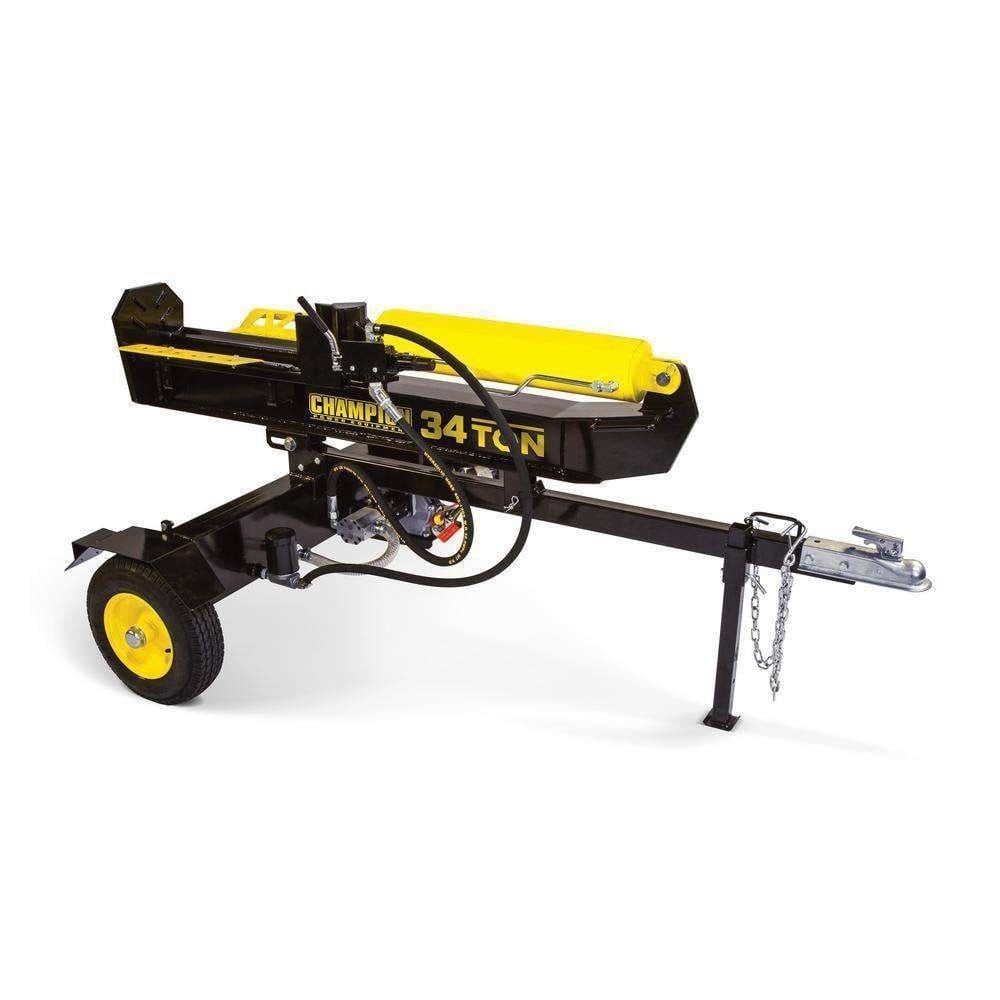

Champion’s towable 34-ton log splitter with its massive 338cc engine easily powers through tough logs. The fast 16-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
Limited Time Free Shipping & No Sales Tax!

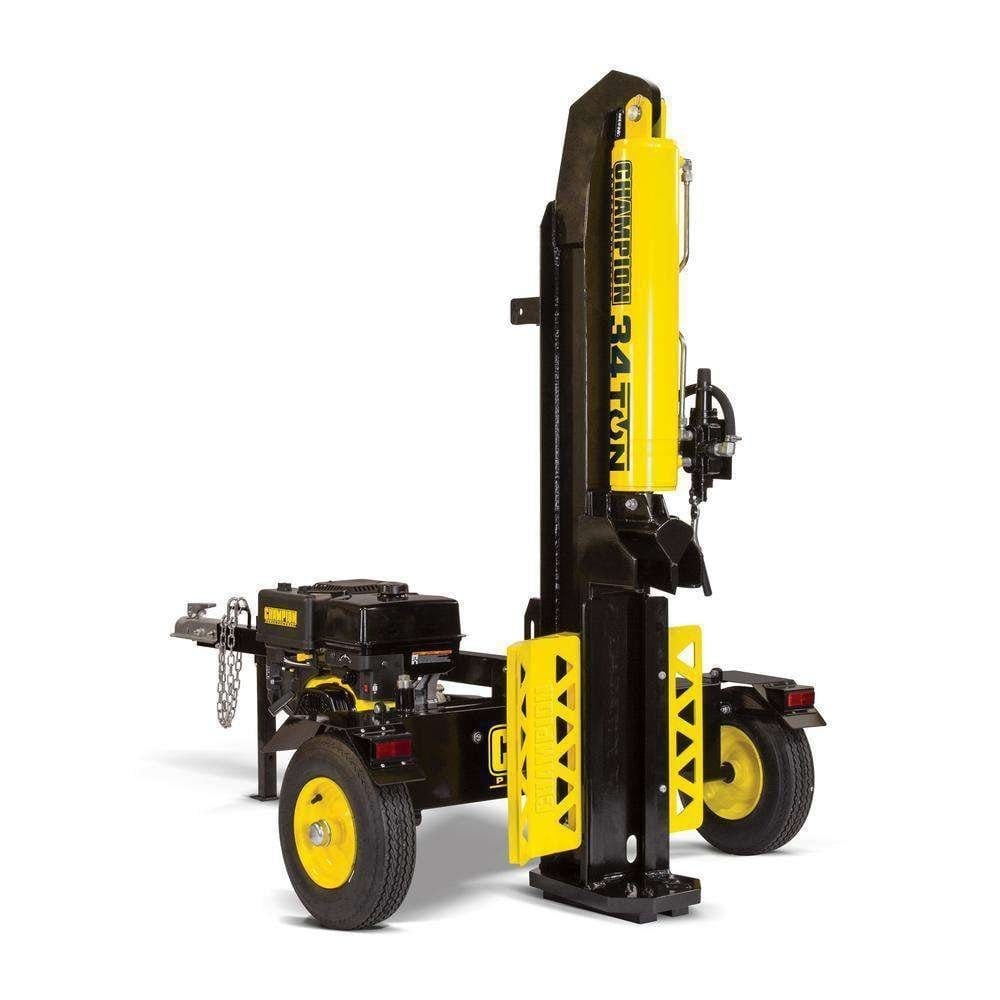

The Champion 35 Ton Gas Powered Log splitter is the largest wood splitter in Champions line up. This log splitter can split either in the horizontal or vertical position with just pulling a pin and rotating the beam and locking the pin back in place.
The 338 CC Champion engine (approx 11HP) has a low oil shut off and a cast iron sleeve for durability. This wood splitter comes equipped with a full tow package with a 2″ coupler and road approved (DOT) tires. This unit is only partially assembled and will require assembly.
These deliveries will be made with a full size freight truck and there will be little or no assistance provided with unloading the items. If you feel that you will need a lift gate to help unload your item please select the lift gate option.
Detailed Specifications
Engine:
Champion 338 cc (11HP Approx)
Splitting Wedge:
7″ Sharpenable
Operating Position:
Horizontal / Vertical
Force / Tonnage:
35 Ton (70,000lbs)
Cylinder:
4.7″ x 23″
Cycle Time:
18-20 Seconds (Approx)
Log Opening:
24 Inches
Wheels & Tires:
High-Speed, 4.80 x 8

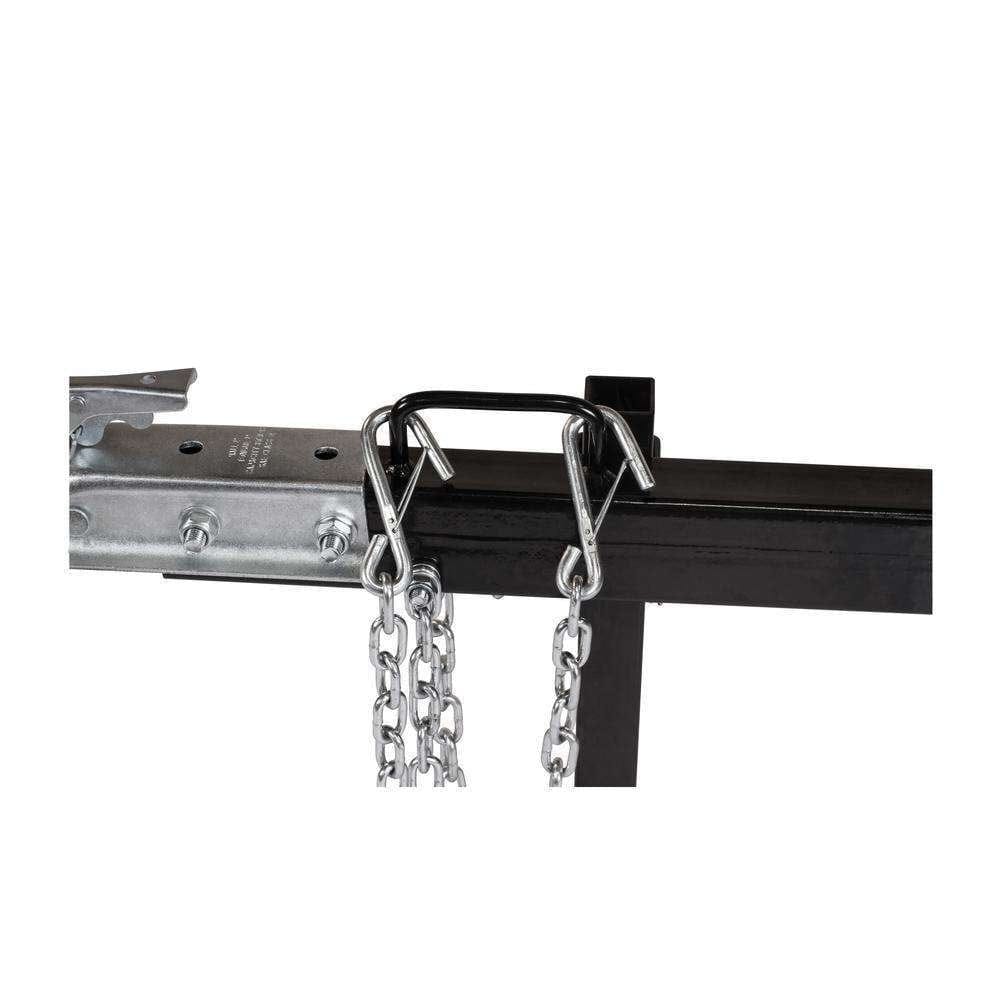

Road Towable:
Yes – 2″ Coupler & Safety Chains
Hydraulic Filter:
Yes – Included
Operating Size:
86″ x 41″ x 47
Hydraulic System:
9 Gallons
Safety Control Valve:
Detent – Auto Return
2 Stage Pump:
Yes – 13 Gallons Per Minute

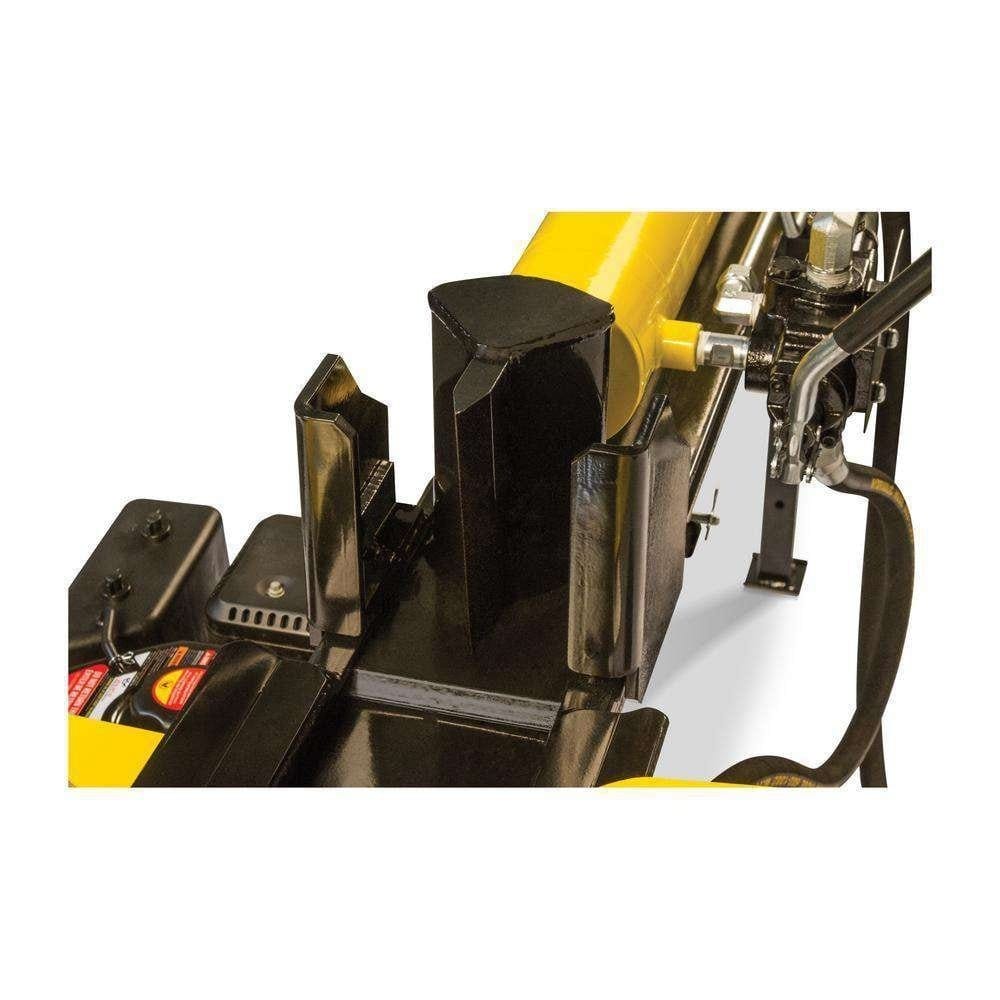

Log Cradles:
Yes – Included
Log Dislodger:
Yes – Included
Crate Dimensions:
55″L x 27″W x 22″H
Consumer Warranty:
Yes – 2 Year Limited
Shipping Weight:
617 LBS
Electric Start:
o
