Atlas SLP-9K Full-Rise Scissor Lift – 9,000 lb. Capacity
The Atlas SLP-9K is a commercial-grade, full-rise scissor lift designed for shops with limited ceiling height while still providing a powerful lifting capacity of 9,000 lbs. With a maximum lifting height of 78 inches (6’6″), this lift is perfect for servicing SUVs, pickup trucks, and other vehicles in professional garages and workshops.
Its low-profile platform height (4.5 inches) and flush-mount capability provide a clean, unobtrusive appearance, making it an excellent choice for shop owners who want a sleek, space-efficient lifting solution. The adjustable width between platforms (up to 31 inches) ensures versatility for different vehicle frames.
The SLP-9K is equipped with a separate control panel, air-actuated safety locks, and UHMP wear blocks, ensuring long-lasting, high-performance operation.
Key Features & Benefits
- 9,000 lb. Lifting Capacity – Ideal for full-frame and unibody SUVs, trucks, and passenger vehicles.

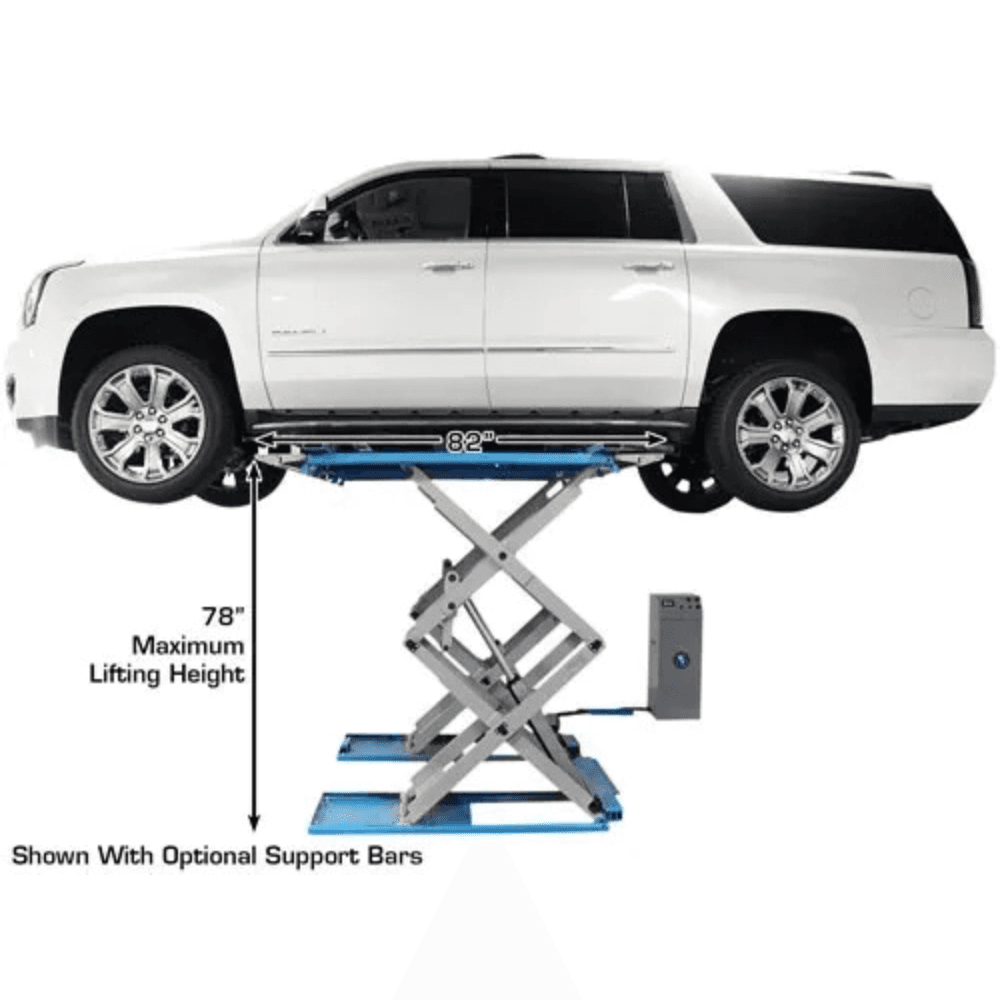

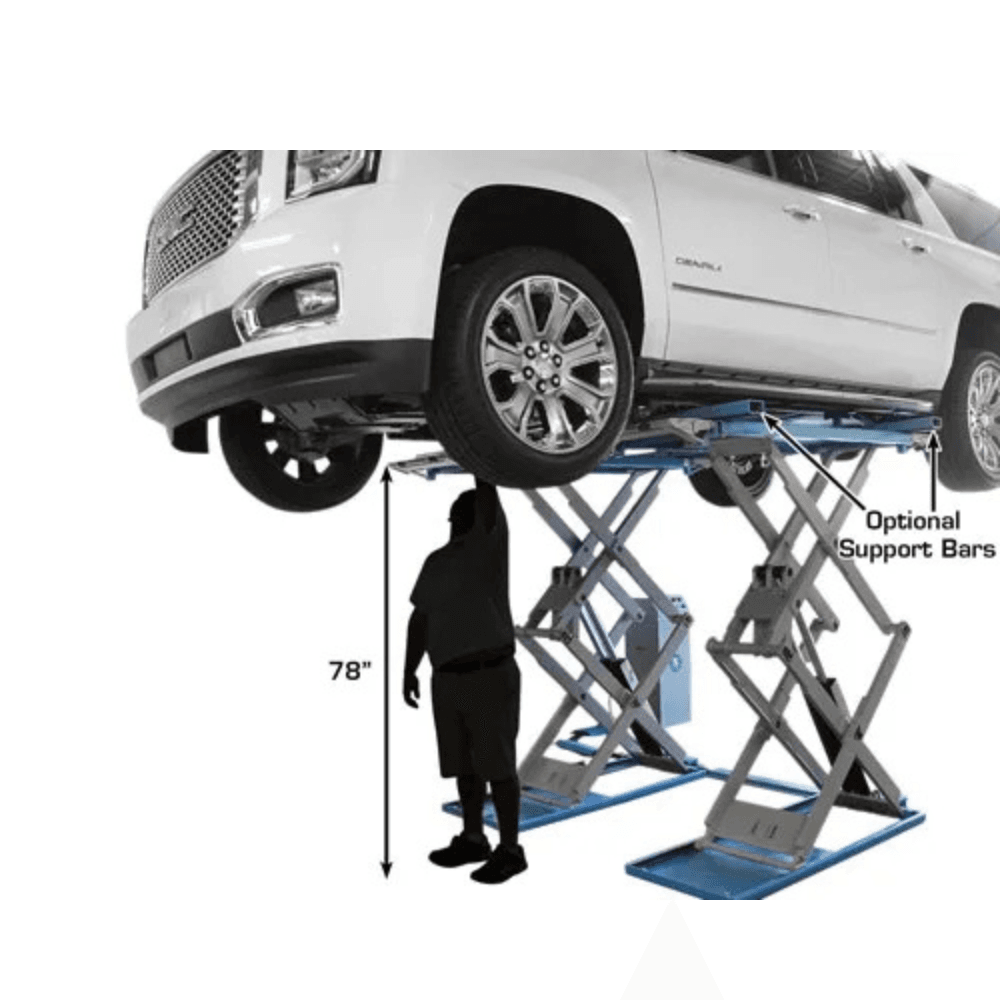

- Full-Rise Scissor Lift (78” Max Height) – Provides ample clearance for undercar repairs, wheel service, and maintenance.

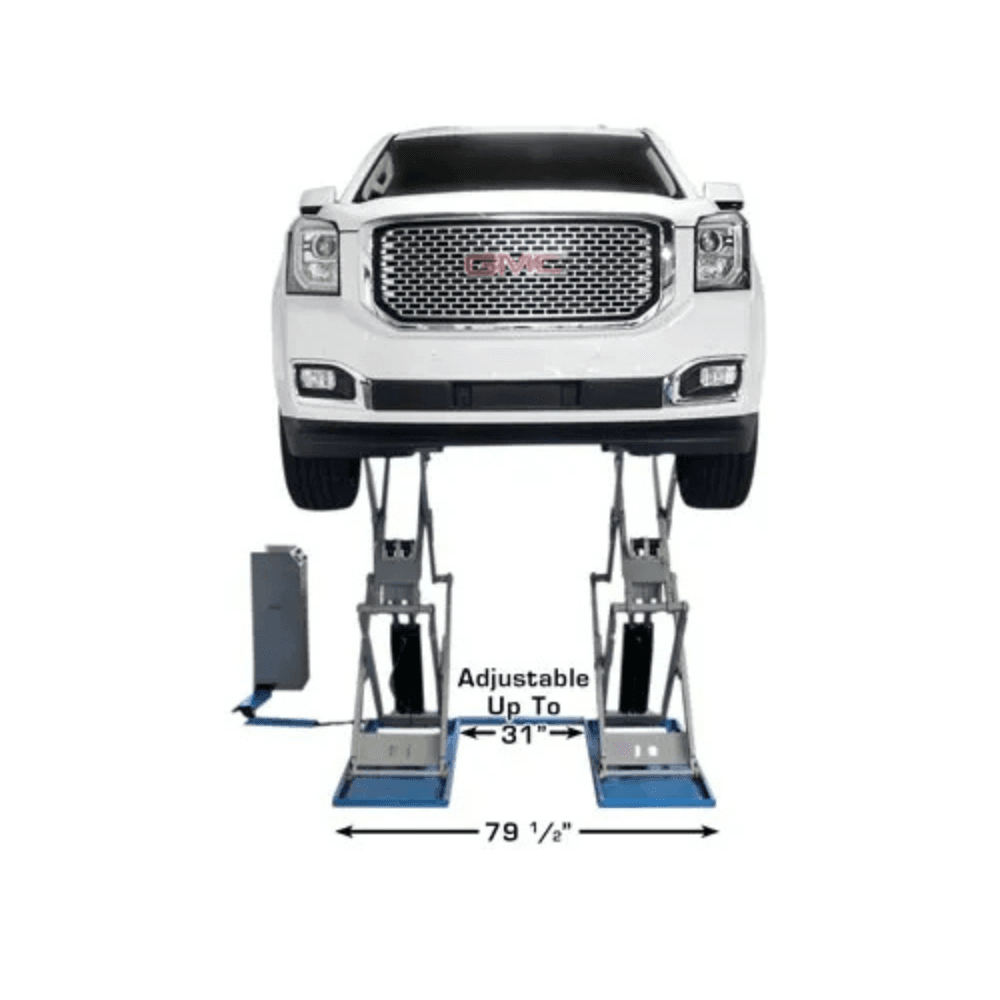

- Adjustable Width Between Platforms – Up to 31 inches, accommodating various vehicle types.
- Flush-Mount Capability – Allows for a flat surface installation, creating a seamless, clean shop floor appearance.
- Locking Approach Ramps – Converts into additional work surfaces when locked in a horizontal position.
- 10 Air-Actuated Locking Positions – Ensures safe and stable lifting at multiple height levels.

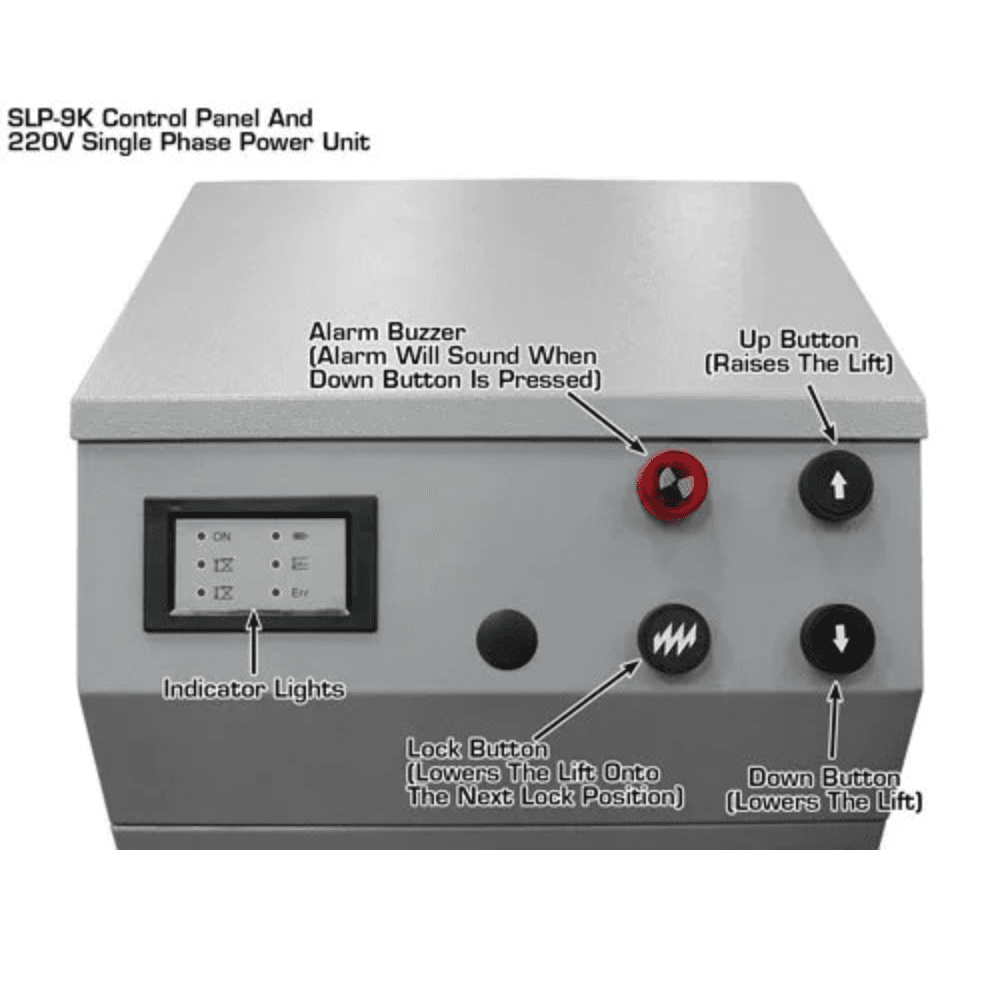

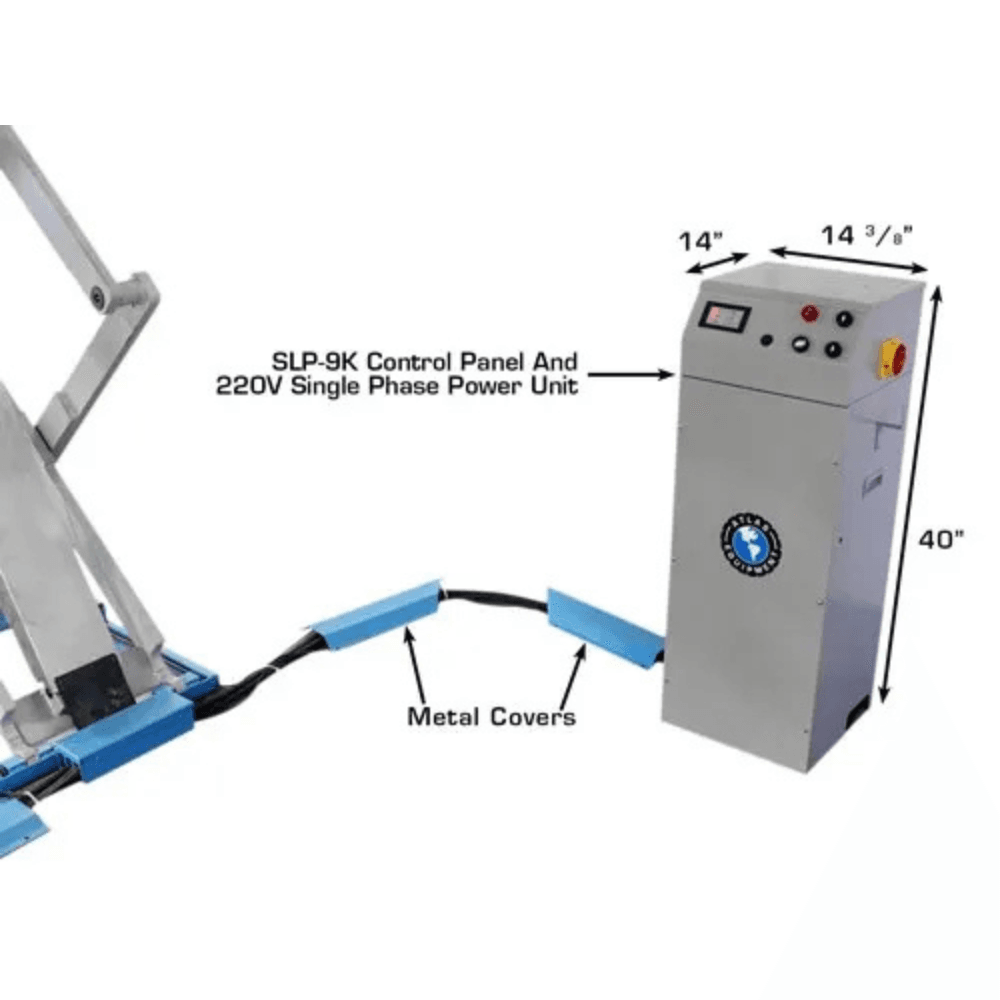

- Separate Self-Contained Control Panel – Provides easy access and convenient operation.
- Zerk Grease Fittings at Each Hinge Point – Enhances lubrication and longevity.
- UHMP Wear Blocks – Maintains high-quality performance over time.
- CE Certified – Meets international safety and quality standards.
- Safety Lowering Limit Switch – Stops descent at 10.5 inches for added protection.
- 220V Single-Phase Motor (2 HP) – Ensures efficient and reliable operation.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 9,000 lbs. |

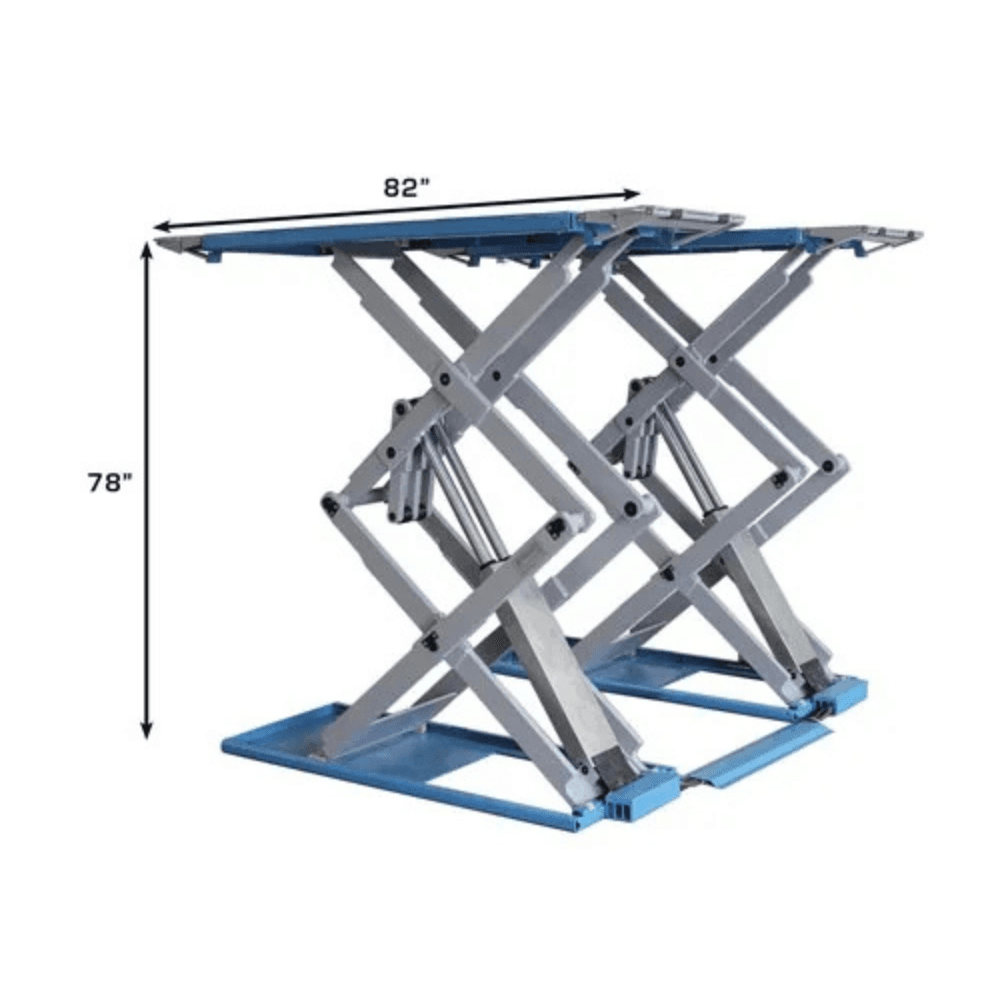

| Maximum Lifting Height | 78″ (6′ 6″) |

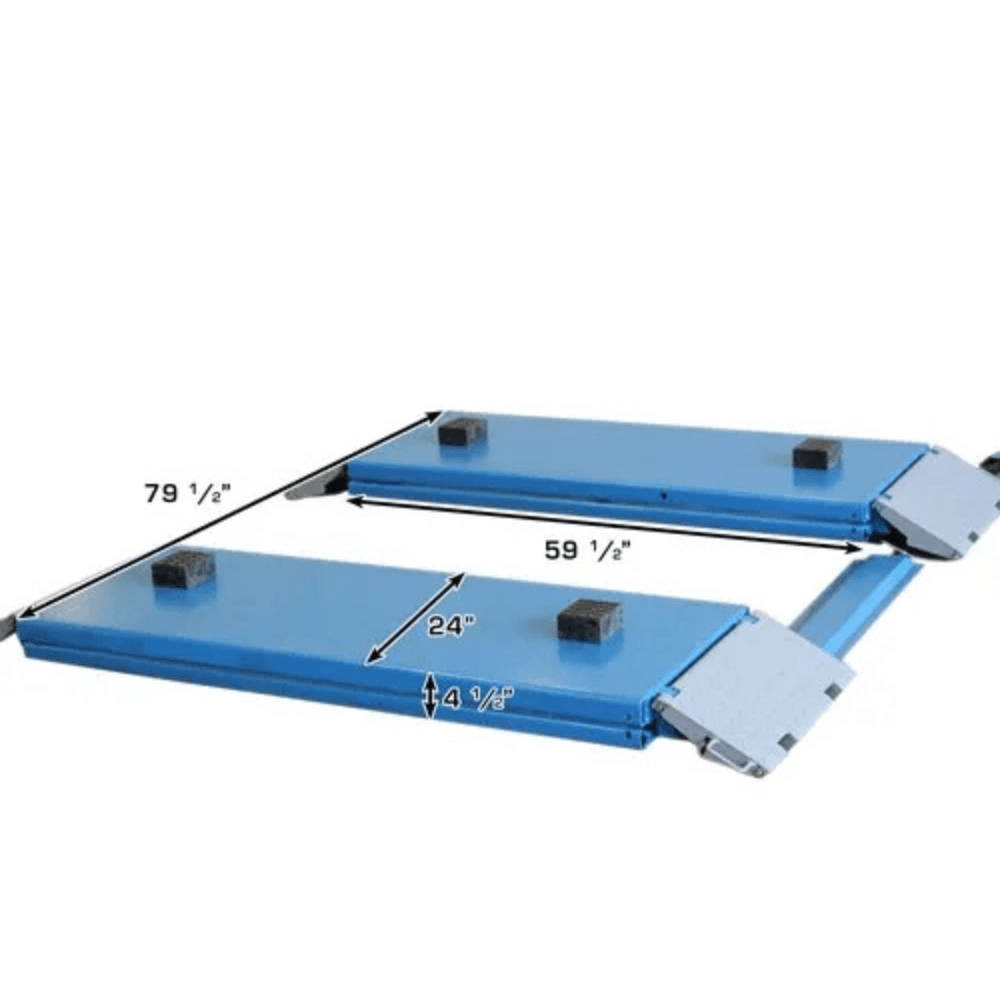

| Overall Length | 82″ |
| Maximum Overall Width | 79 ½” |
| Lift Platform Dimensions | 59 ½” x 24″ |
| Lowered Height | 4 ½” |
| Width Between Platforms | Adjustable up to 31″ |
| Approach Ramp Dimensions | 11″ x 24″ |
| Power Unit | 2 HP, 220V +/- 5% (209-231V), Single Phase |
| Breaker Requirement | 30 Amp |
| Locking Positions | 10 |
| Locks Actuated By | Air |

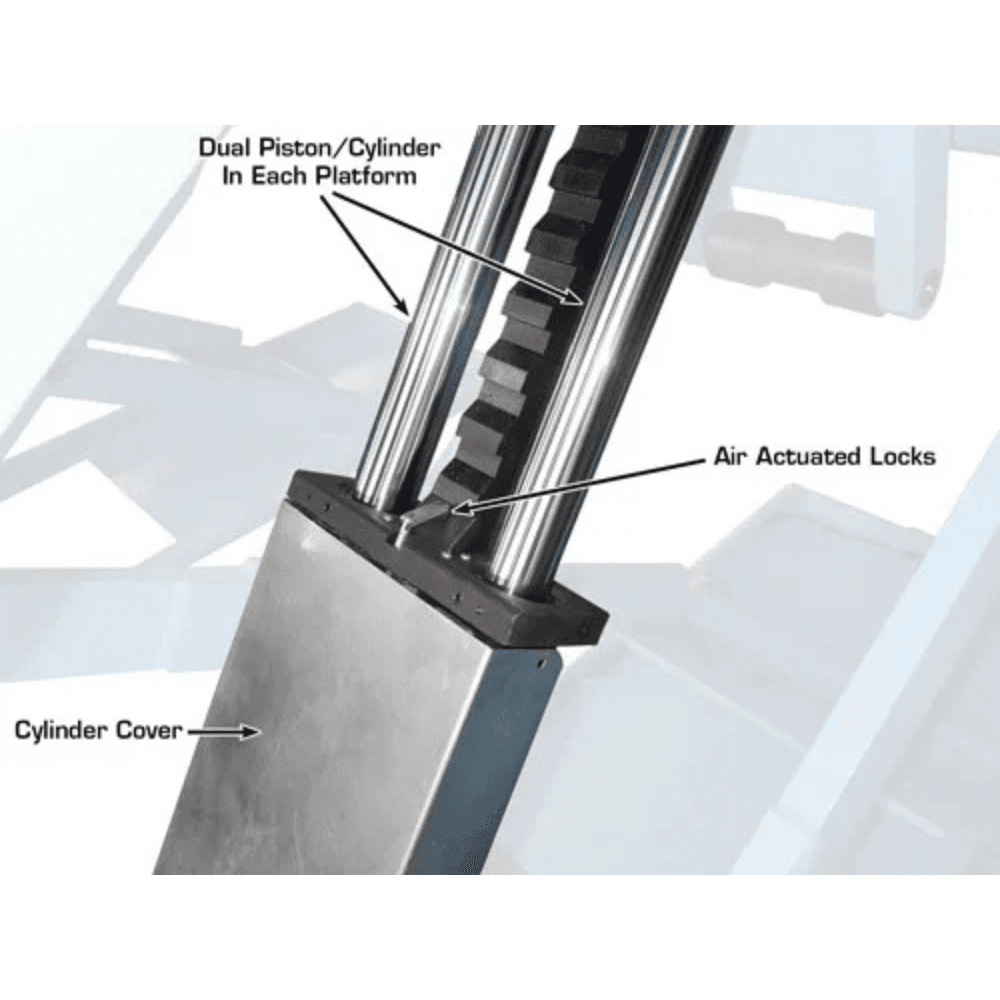

| Lifting Cylinders | 4 (2 in Each Platform) |
| Oil Requirement | 3.5 Gallons AW32/AW46 |
| Shipping Weight | 2,400 lbs. |
Why Choose the Atlas SLP-9K?
The Atlas SLP-9K is an excellent full-rise scissor lift designed for shops with limited ceiling height while still offering maximum lifting power. With flush-mount capability, adjustable width, and robust safety features, this lift is perfect for professional mechanics and shop owners who need a clean, efficient, and powerful lifting solution.
For a durable, high-performance scissor lift that blends seamlessly into any workspace, the Atlas SLP-9K is the ultimate choice!
