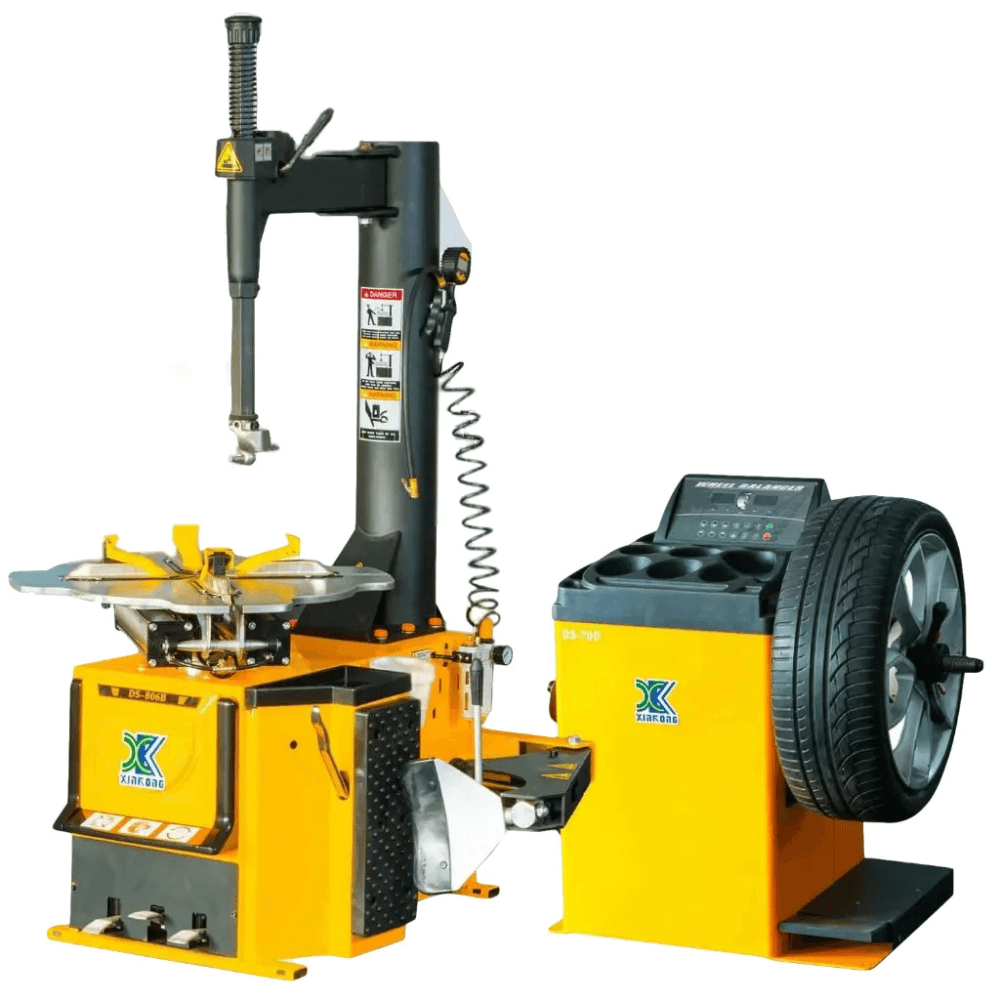

1.5 HP Tire Changer & Wheel Balancer Machine Combo – Model 806B & 70D
The 1.5 HP Tire Changer & Wheel Balancer Machine Combo 806B & 70D is an economical and practical solution for automotive shops and home garages looking for efficient tire changing and precise wheel balancing. Designed to handle a wide range of rim sizes and tire types, this combo set delivers reliable performance, durability, and user-friendly operation.

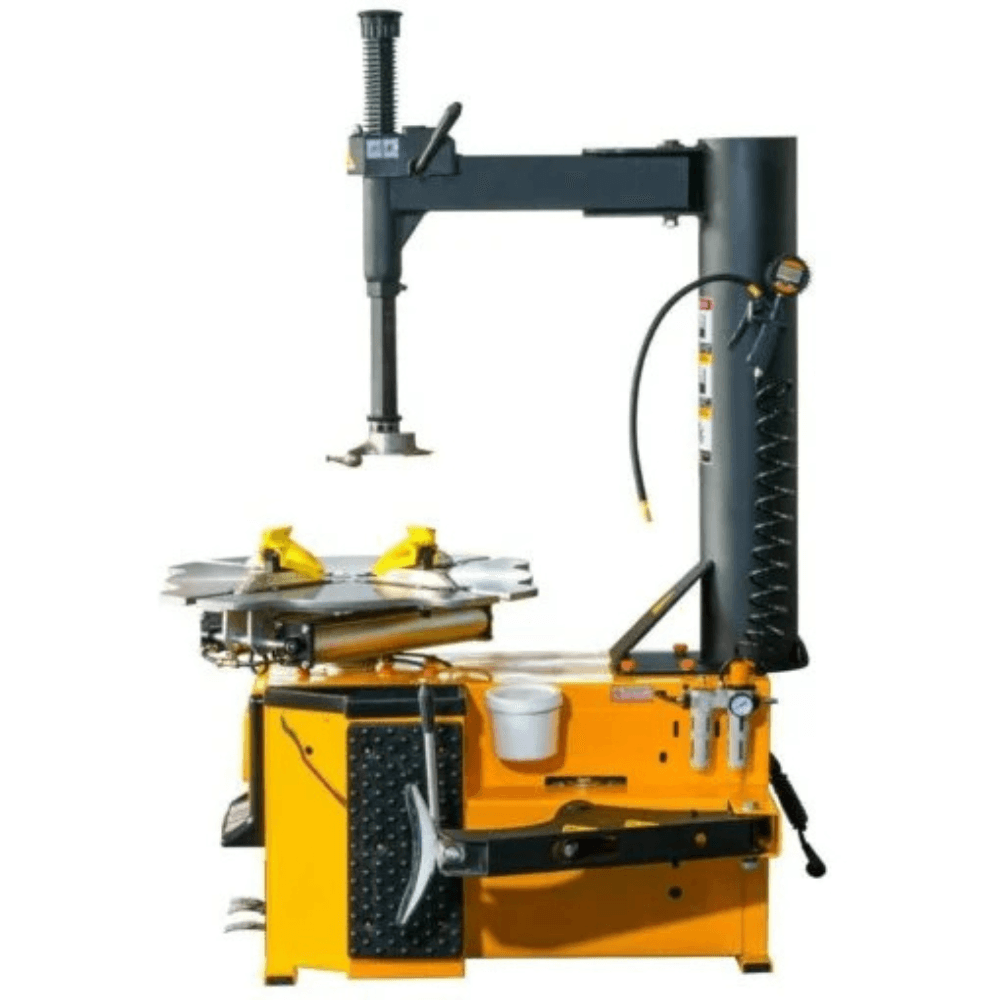

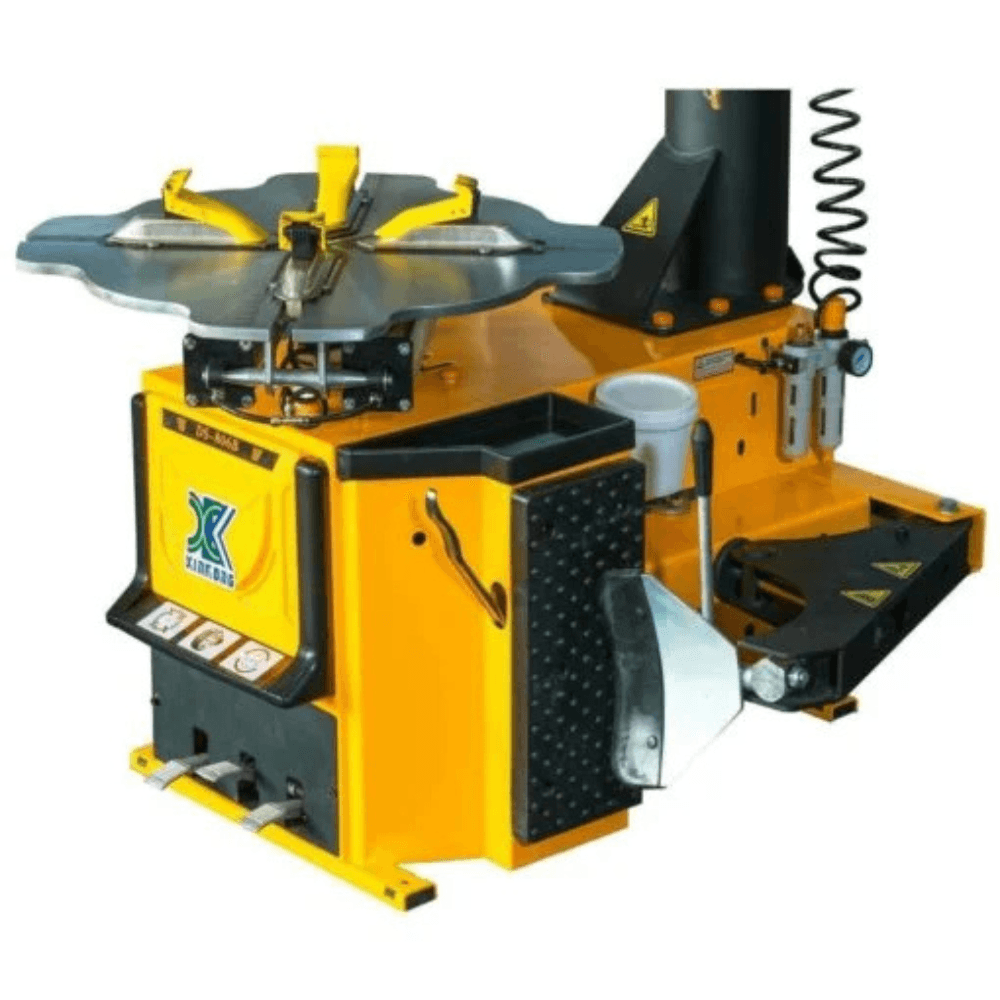

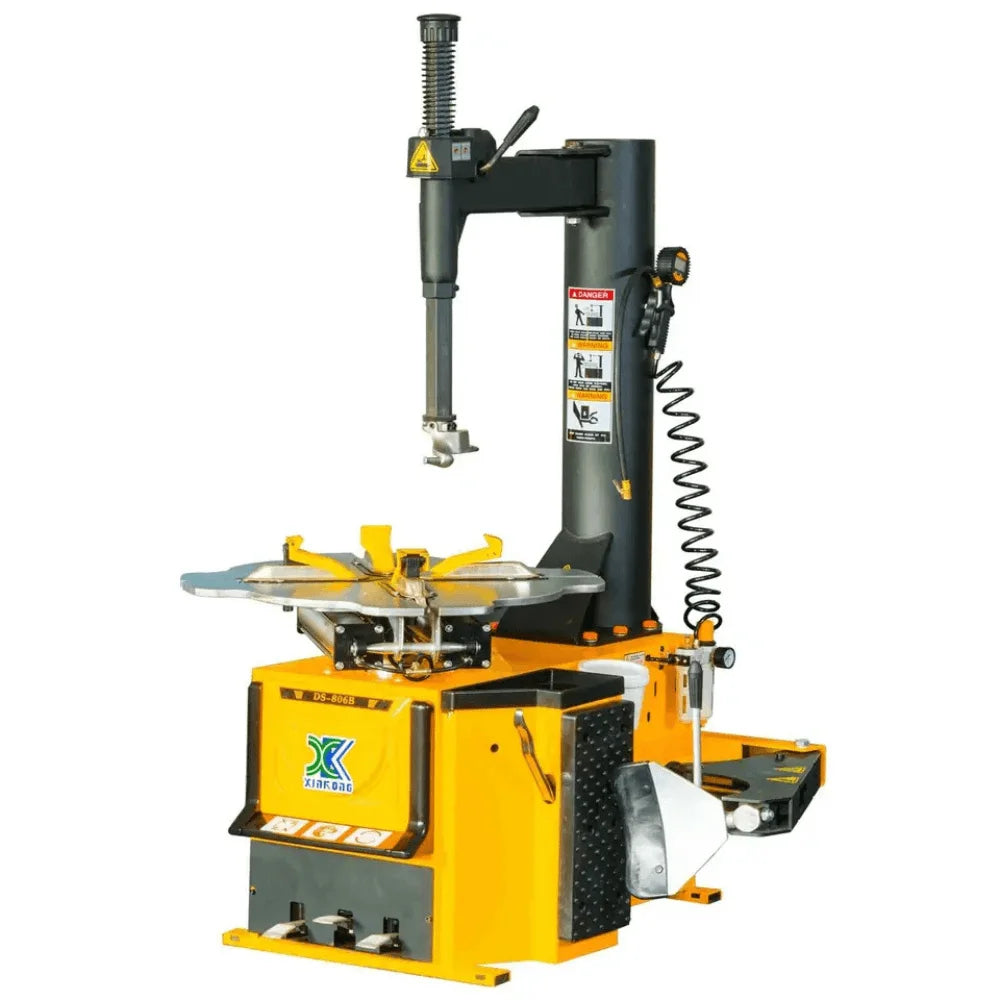

806B Tire Changer Features
- Economical & Practical Design – Perfect for small to medium-sized shops and home garages.
- High-Density Aluminum Piston (Spade Cylinder) – Increases durability and extends service life.
- Precision Steel Cast Clamping Jaws – Provides firm grip and long-lasting durability.
- Optional Motorcycle Adapter Available – Expands compatibility for motorcycle tires.
- Enhanced Inner Box Structure – Prevents mechanical deformation and increases lifespan.
- Protective Clamping Jaw Sleeve – Protects tires and rims from damage.
- Air Bead Blaster Function – Ensures fast and efficient bead seating.
- Power Supply: 110V
Tire Changer Specifications
| Specification | Measurement / Detail |
|---|---|
| Rim Clamping (Inside) | 14″ – 26″ |
| Rim Clamping (Outside) | 12″ – 28″ |
| Maximum Wheel Diameter | 46″ |
| Maximum Tire Width | 3″ – 14″ |
| Bead-Breaker Force | 2500 kgf |
| Operating Pressure | 8-10 bar |
| Weight | 536 lbs |

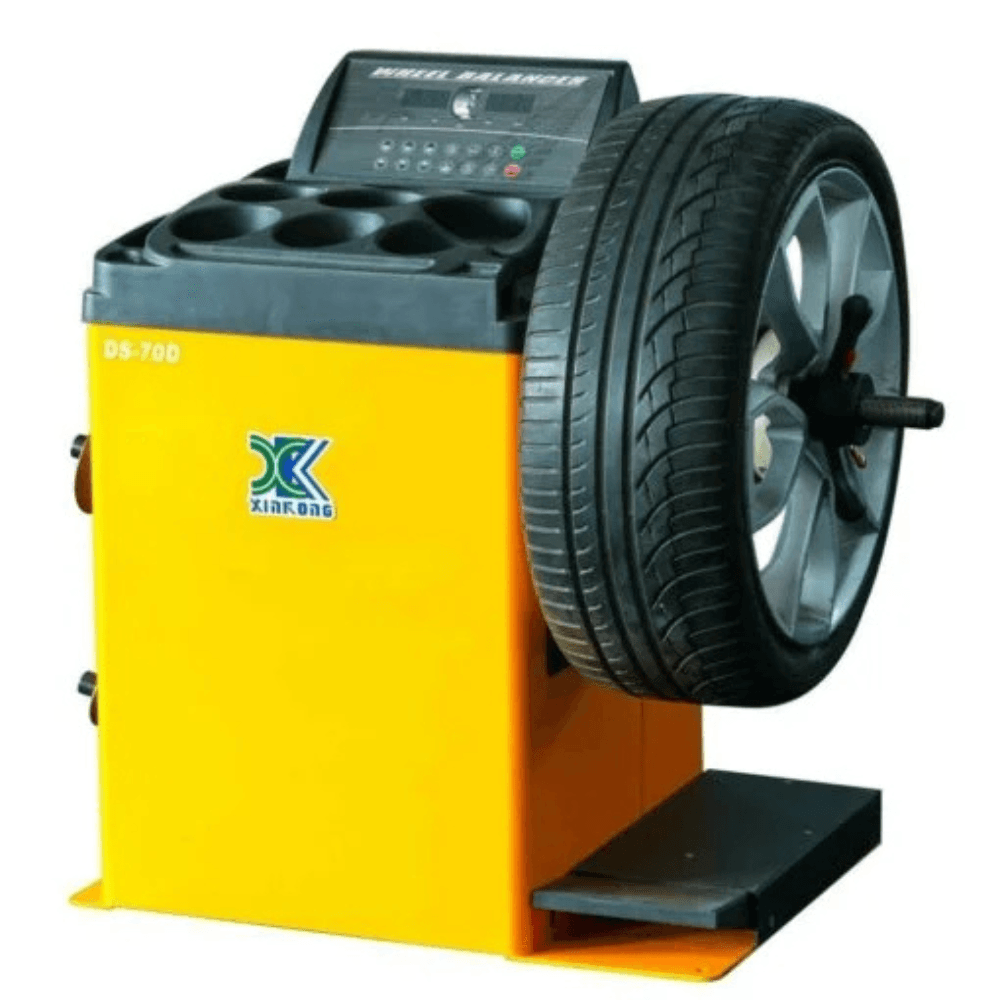

70D Wheel Balancer Features
- Automatic Static & Dynamic Balancing Programs – Ensures precise balancing for all wheel types.
- ALU Program – Supports aluminum wheels and custom balancing needs.
- External & Internal Data Set Arm – Provides simple operation with accurate measurements.
- Multiple Balancing Programs – Compatible with various wheel structures.
- HTD Program – Allows weight to be hidden behind spokes for aesthetics.
- OPT Program – Optimizes wheel and rim balancing for smoother performance.
- Foot Brake Positioning – Holds the wheel at the unbalanced point for precision adjustments.
- Fault Diagnosis System – Detects component issues for easy troubleshooting.
- Power Supply: 110V
Wheel Balancer Specifications
| Specification | Measurement / Detail |
|---|---|
| Rim Diameter | 10″ – 24″ |
| Maximum Tire Diameter | 39″ |
| Tire Width | 1.5″ – 16″ |
| Maximum Tire Weight | 154 lbs |
| Packing Size | 980 x 700 x 1050 mm |
| Rotation Speed | 200 r/min |
| Balancing Precision | ±1g |
| Motor Voltage | 110V |
| Gross Weight | 269 lbs |
Why Choose the 806B Tire Changer & 70D Wheel Balancer Combo?
The 806B Tire Changer & 70D Wheel Balancer is an excellent choice for shops and garages that need an affordable, high-performing tire service solution. Its strong build, versatile features, and precise balancing technology make it ideal for a wide range of vehicle types.
For reliable, efficient, and user-friendly tire servicing, the 1.5 HP Tire Changer & Wheel Balancer Machine Combo 806B & 70D is the perfect choice!
